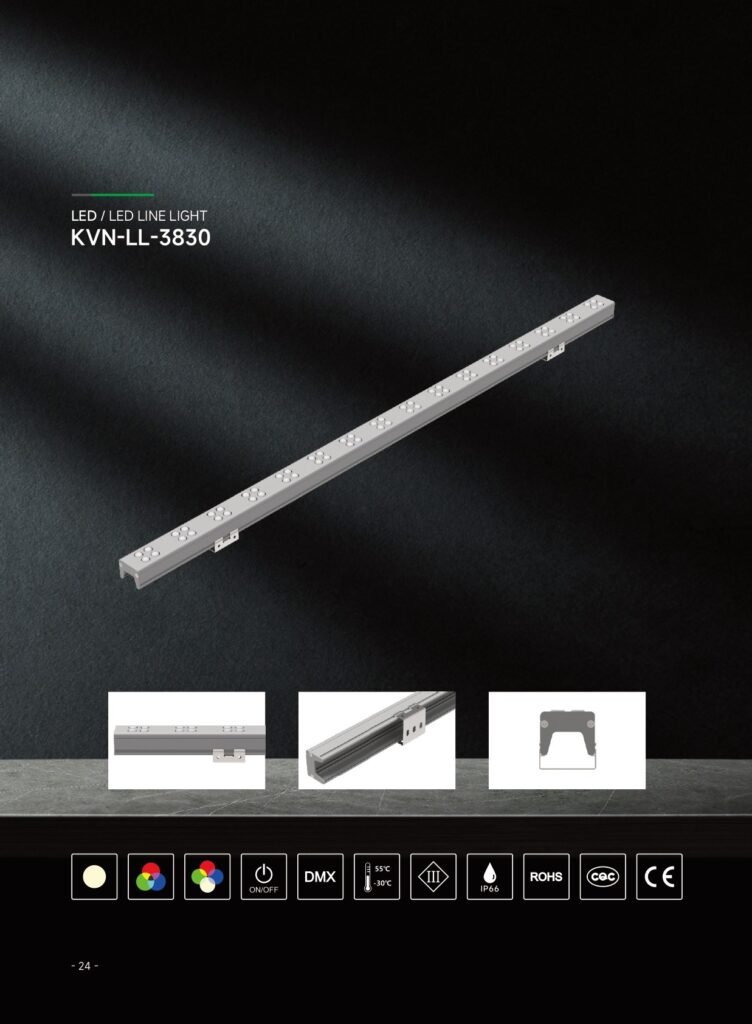

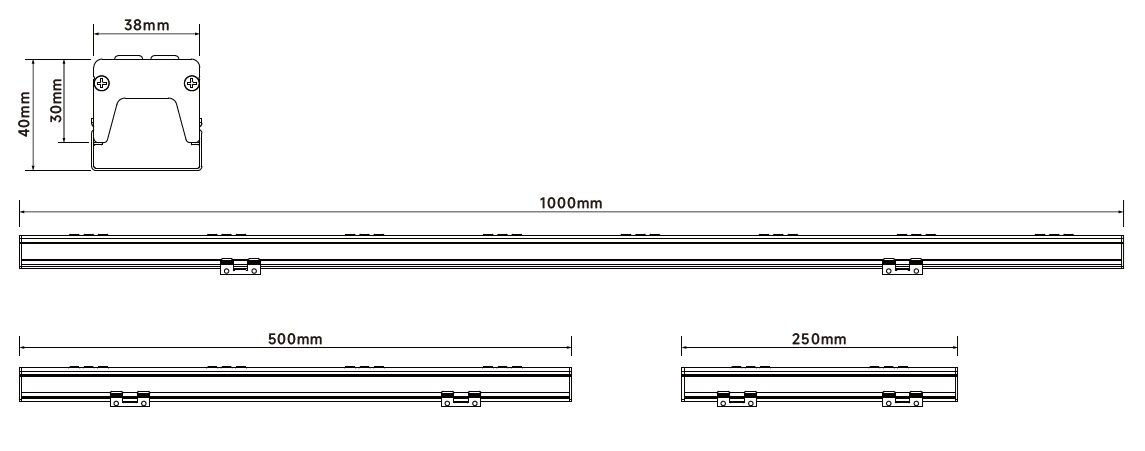

LED LINE LIGHT KVN-LL-3830

Argument

● LIGHT COLOR :

● CONTROL MODE :

● OPTIONAL CONFIGURATION :

● LAMP BODY MATERIAL :

● MASK MATERIAL :

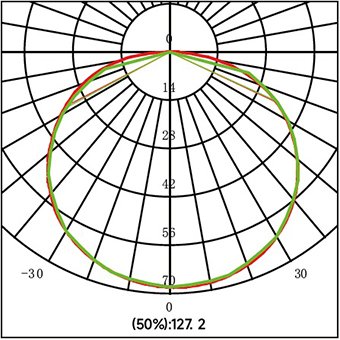

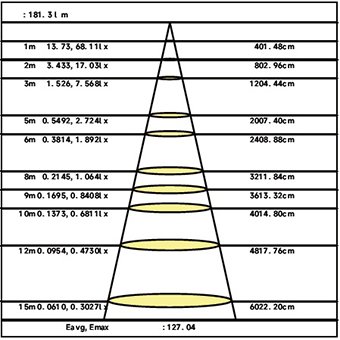

●LUMINOUS ANGLE :

● PROTECTION LEVEL :

● ELECTRICAL GRADE :

● OPERATING TEMPERATURE :

Monochrome / RGB / RGBW

ON/OF, DMX512

Lightsource, support

Aluminum

120°

IP66

Class III

-30℃ ~ 55℃

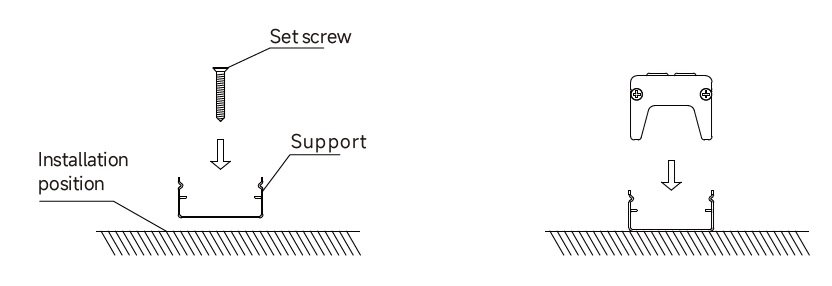

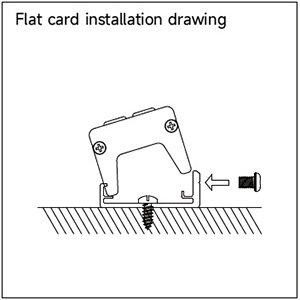

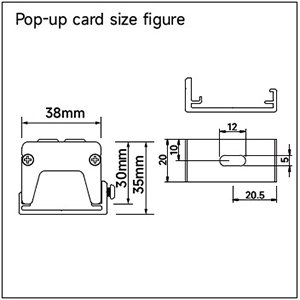

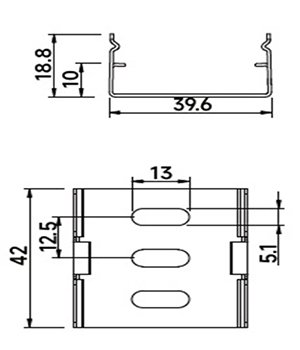

① First fix the lamp body with screws on the required mounting surface

② Install the lamp stuck into the bracket, and fix the lamp with screws

③Tighten the screw

Control Mode	Linear Order	Input Diagram
ON / OFF	🔴+/DC24V ⚫-/GND

Control Mode	Linear Order	Input Diagram
DMX	🔴DC24V ⚫GND 🟢A 🔵B 🟡PI / PO

Control mode	Luminaire voltage	Luminaire power	Lamp power supply line specification	Number of single side portable lamps	Tee wiring	Bus wiring	Power supply can be connected to the number of lamps formula
Steady light	24V	12W	2*1.0²	12	1:24	1:24	Power supply can be connected to the number of lamps: n=((0.8 * Power supply of the power supply) /(power of a single lamp)) * n take the intege
Monochromatic DMX	24V	10W	2*0.75+3×0.3	10	1:16	1:40
RGB DMX512	24V	10W	2*0.75+3×0.3	10	1:16	1:40
RGBW DMX512	24V	14W	2*0.75+3×0.3	8	1:16	1:30

Control mode	Luminous flux	Photochromy	Light source specification	Chip	Length (mm)	Number of light	Number of segments	Rated voltage	Rated power
ON/OFF	548.7	monochrome	2835	OSRAM	1000	48	–	DC24V	12W
ON/OFF	265.6	monochrome	2835	OSRAM	500	24	–	DC24V	6W
ON/OFF	125.2	monochrome	2835	OSRAM	250	12	–	DC24V	3W
DMX512	506.7	monochrome	2835	OSRAM	1000	48	8	DC24V	10W
DMX512	215.6	monochrome	2835	OSRAM	500	24	4	DC24V	5W
DMX512	104.2	monochrome	2835	OSRAM	250	12	2	DC24V	2.5W
DMX512	126.3	RGB	5050	EPISTAR	1000	48	8	DC24V	10W
DMX512	63.2	RGB	5050	EPISTAR	500	24	4	DC24V	5W
DMX512	31.6	RGB	5050	EPISTAR	250	12	2	DC24V	2.5W
DMX512	220.5	RGBW	5050	EPISTAR	1000	48	8	DC24V	13W
DMX512	110.2	RGBW	5050	EPISTAR	500	24	4	DC24V	6.5W
DMX512	55.1	RGBW	5050	EPISTAR	250	12	2	DC24V	3.3W
