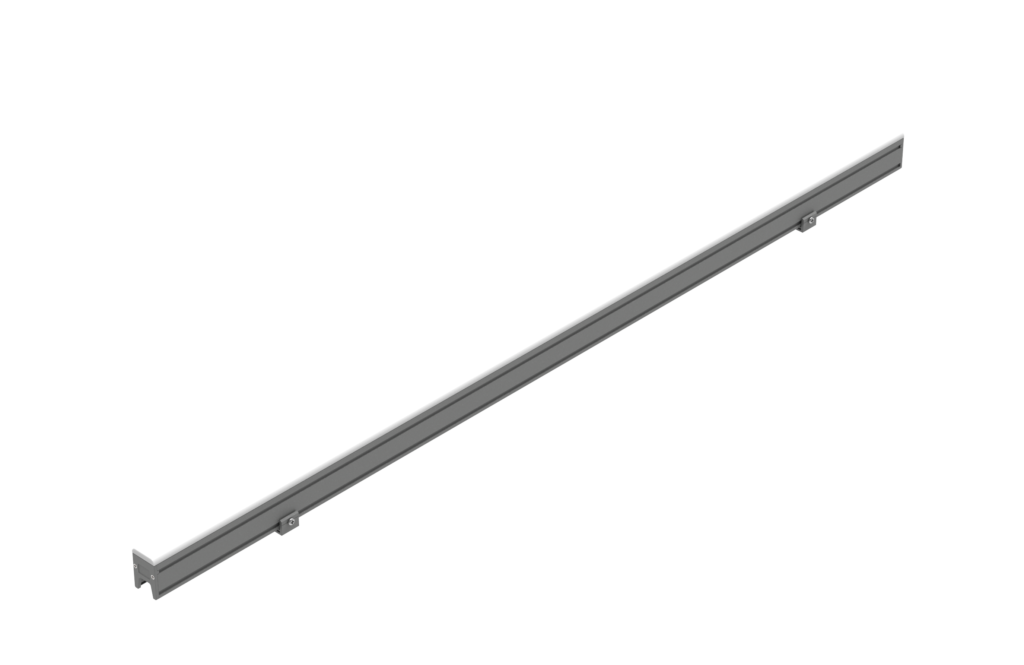

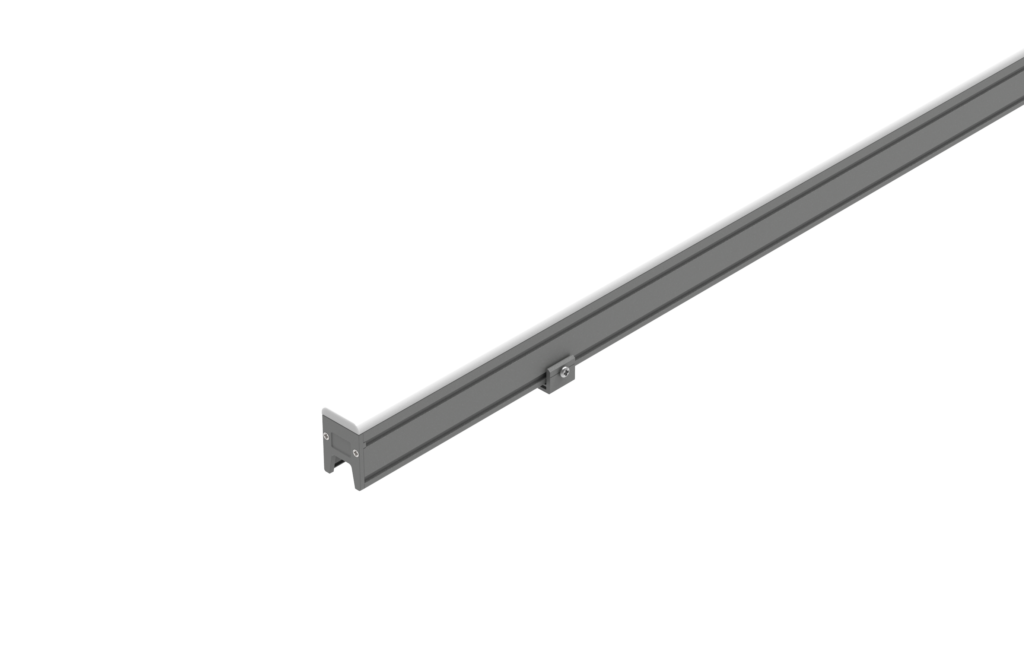

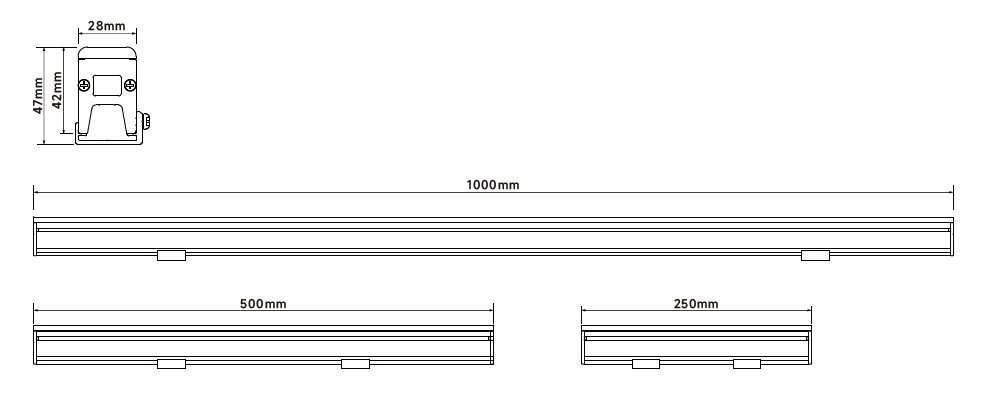

LED LINE LIGHT KVN-LL-2842A

Argument

● LIGHT COLOR :

● CONTROL MODE :

● OPTIONAL CONFIGURATION :

● LAMP BODY MATERIAL :

● MASK MATERIAL :

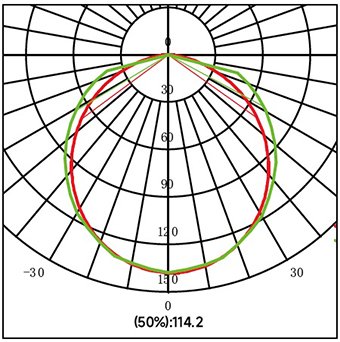

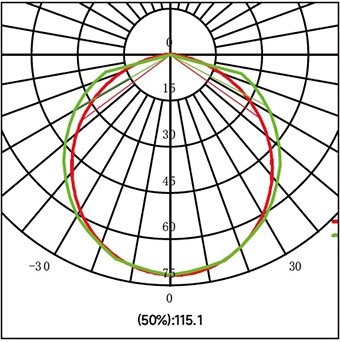

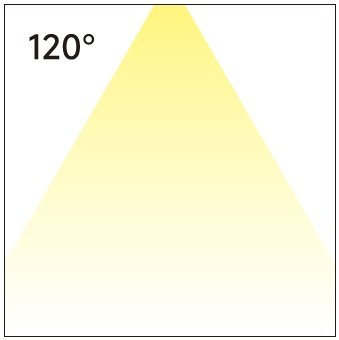

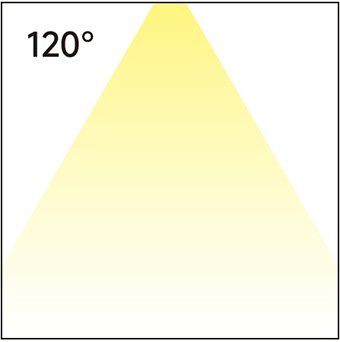

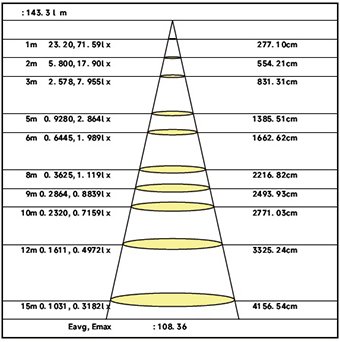

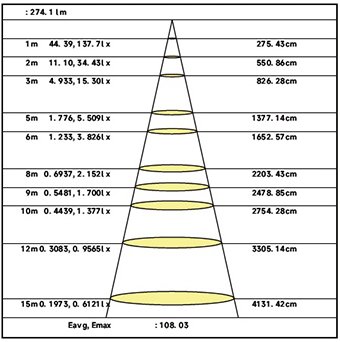

●LUMINOUS ANGLE :

● PROTECTION LEVEL :

● ELECTRICAL GRADE :

● OPERATING TEMPERATURE :

Monochrome / RGB / RGBW

ON/OF, DMX512

Lightsource, support

Aluminum

Acrylic

120°

IP66

ClassIII

-30℃ ~ 55℃

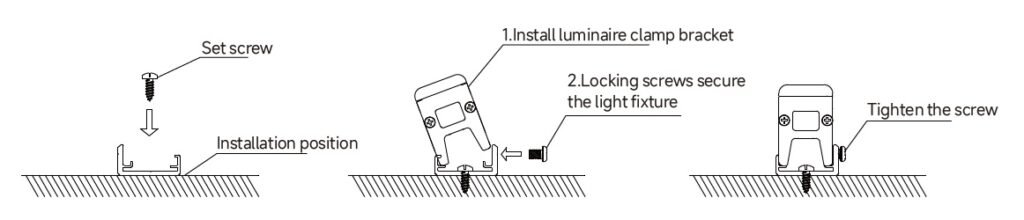

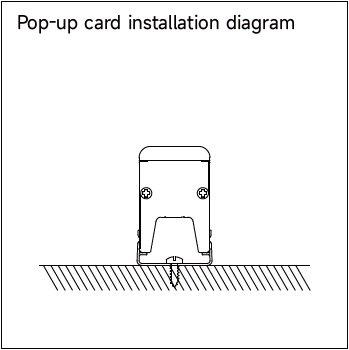

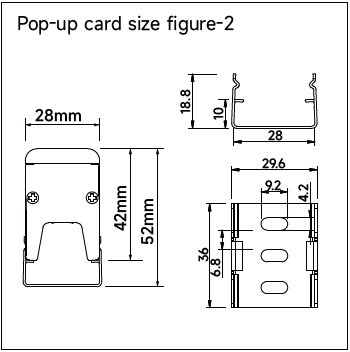

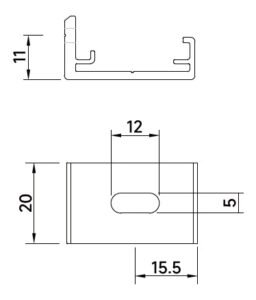

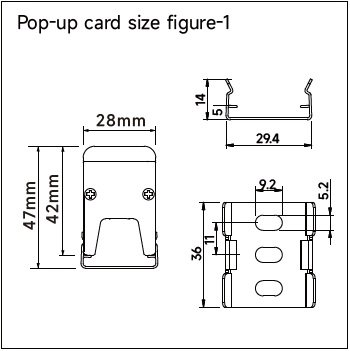

① First fix the lamp body with screws on the required mounting surface

② Install the lamp stuck into the bracket, and fix the lamp with screws

③Tighten the screw

Control Mode	Linear Order	Input Diagram
ON / OFF	🔴+/DC24V ⚫-/GND

Control Mode	Linear Order	Input Diagram
DMX	🔴DC24V ⚫GND 🟢A 🔵B 🟡PI / PO

Control mode	Luminaire voltage	Luminaire power	Lamp power supply line specification	Number of single side portable lamps	Tee wiring	Bus wiring	Power supply can be connected to the number of lamps formula
Steady light	24V	15W	2*1.0²	7	1:24	1:24	Power supply can be connected to the number of lamps: n=((0.8 * Power supply of the power supply) /(power of a single lamp)) * n take the intege
Monochromatic DMX	24V	12W	2*0.75+3×0.3	8	1:16	1:40
RGB DMX512	24V	12W	2*0.75+3×0.3	8	1:16	1:40
RGBW DMX512	24V	16W	2*0.75+3×0.3	7	1:16	1:30

Control mode	Luminous flux	Photochromy	Light source specification	Chip	Length (mm)	Number of light	Number of segments	Rated voltage	Rated power
ON/OFF	504.87	monochrome	2835	OSRAM	1000	48	/	DC24V	15W
ON/OFF	252.38	monochrome	2835	OSRAM	500	24	/	DC24V	7.5W
ON/OFF	12.93	monochrome	2835	OSRAM	250	12	/	DC24V	3.8W
DMX512	504.87	monochrome	2835	OSRAM	1000	48	8	DC24V	15W
DMX512	252.38	monochrome	2835	OSRAM	500	24	4	DC24V	7.5W
DMX512	12.93	monochrome	2835	OSRAM	250	12	2	DC24V	3.8W
DMX512	125.4	RGB	5050	EPISTAR	1000	48	8	DC24V	10W
DMX512	62.2	RGB	5050	EPISTAR	500	24	4	DC24V	5W
DMX512	31.5	RGB	5050	EPISTAR	250	12	2	DC24V	2.5W
DMX512	219.1	RGBW	5050	EPISTAR	1000	48	8	DC24V	14W
DMX512	109.5	RGBW	5050	EPISTAR	500	24	4	DC24V	7W
DMX512	54.7	RGBW	5050	EPISTAR	250	12	2	DC24V	3.5W
