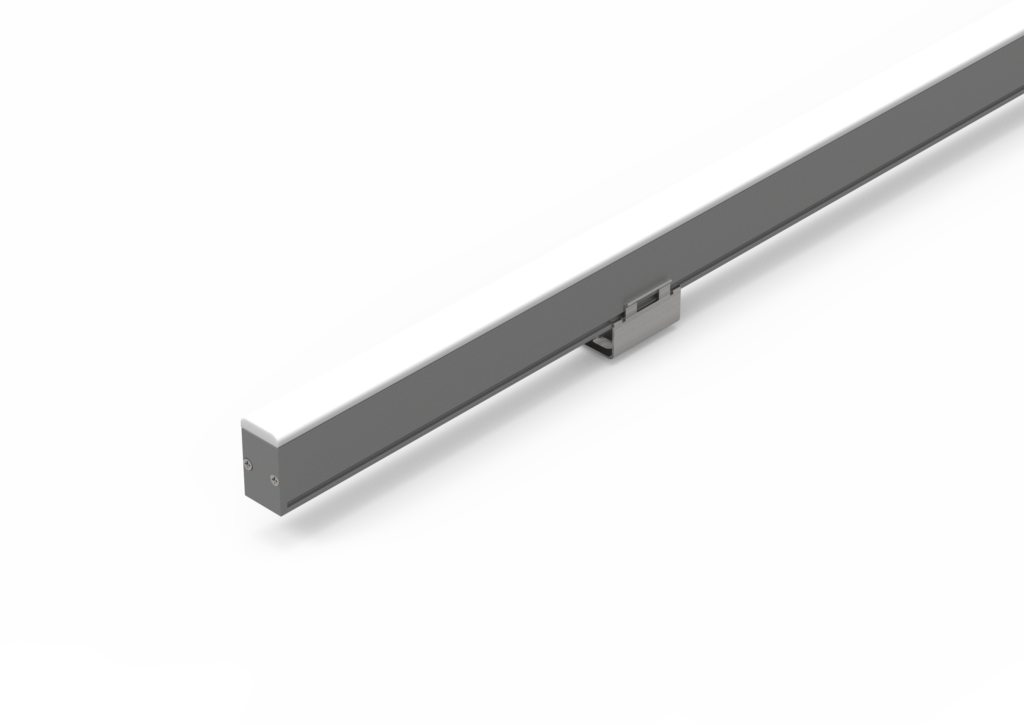

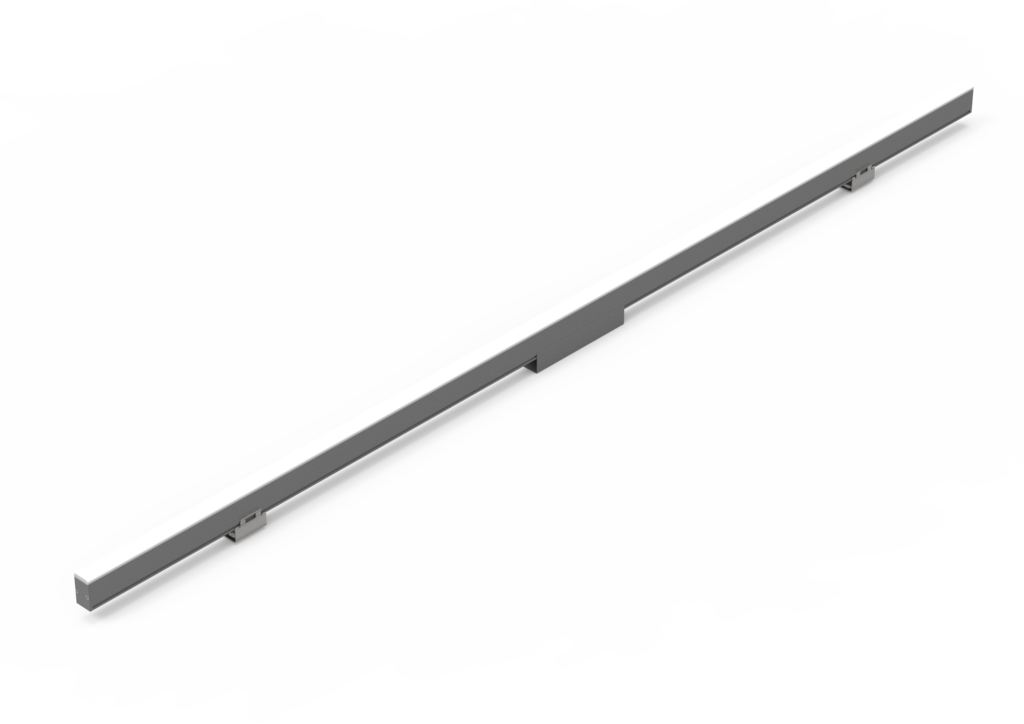

LED LINE LIGHT KVN-LL-1527

Argument

● LIGHT COLOR :

● CONTROL MODE :

● OPTIONAL CONFIGURATION :

● LAMP BODY MATERIAL :

● MASK MATERIAL :

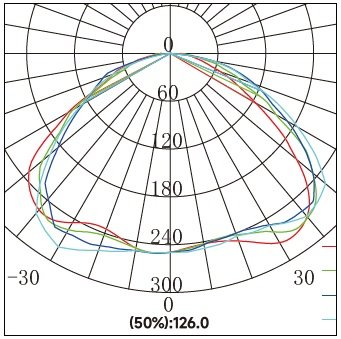

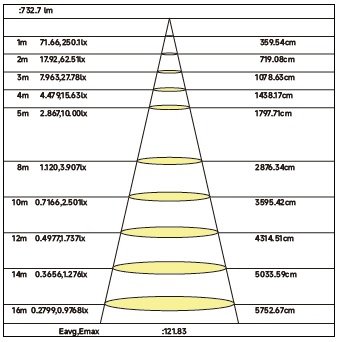

●LUMINOUS ANGLE :

● PROTECTION LEVEL :

● ELECTRICAL GRADE :

● OPERATING TEMPERATURE :

Monochrome / RGB / RGBW

ON/OF, DMX512

Lightsource, support

Aluminum

Acrylic

120°

IP66

III类 / ClassIII

-30℃ ~ 55℃

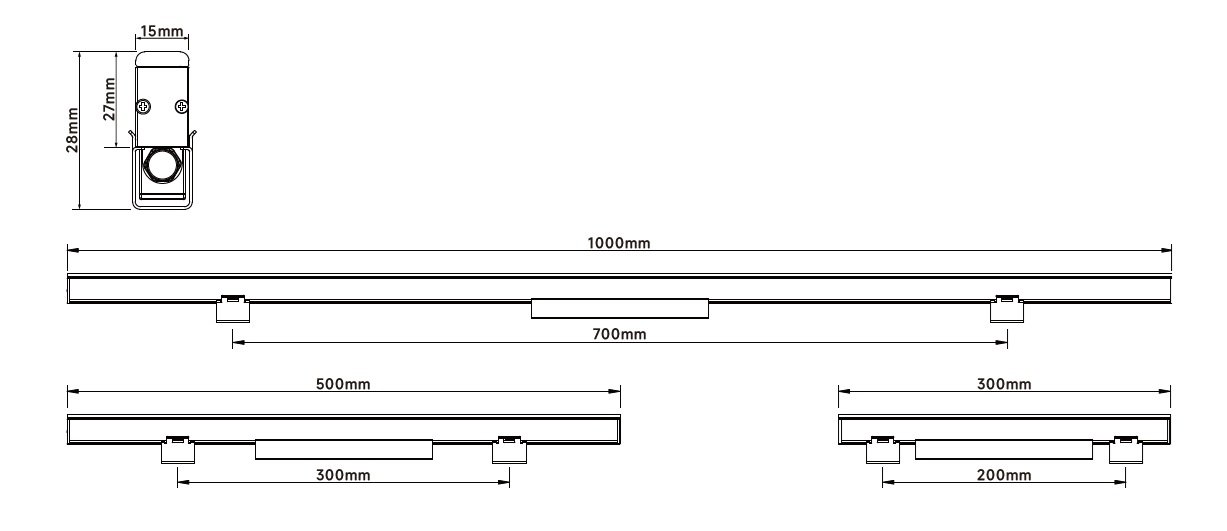

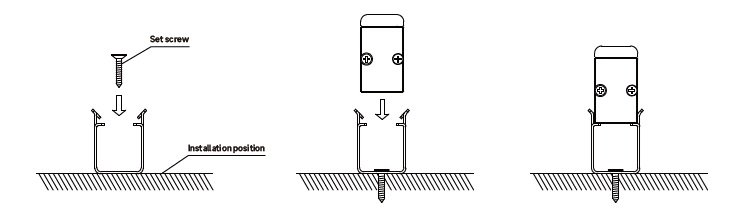

① First fix the lamp body with screws on the required mounting surface

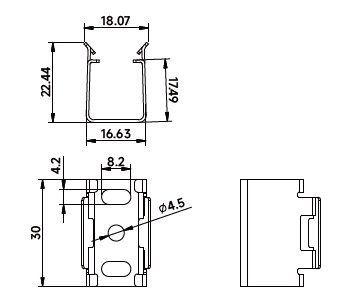

② Install the lamp stuck into the bracket, and fix the lamp with screws

③Tighten the screw

Control Mode	Linear Order	Input Diagram
ON / OFF	🔴+/DC24V ⚫-/GND

Control Mode	Linear Order	Input Diagram
DMX	🔴DC24V ⚫GND 🟢A 🔵B 🟡PI / PO

Control mode	Luminaire voltage	Luminaire power	Lamp power supply line specification	Number of single side portable lamps	Tee wiring	Bus wiring	Power supply can be connected to the number of lamps formula
Steady light	24V	10W	2*1.0²	8	1:24	1:24	Power supply can be connected to the number of lamps: n=((0.8 * Power supply of the power supply) /(power of a single lamp)) * n take the intege
Monochromatic DMX	24V	10W	2*0.75+3×0.3	8	1:16	1:40
RGB DMX512	24V	10W	2*0.75+3×0.3	8	1:16	1:40
RGBW DMX512	24V	10W	2*0.75+3×0.3	8	1:16	1:30

Control mode	Luminous flux	Photochromy	Light source specification	Chip	Length (mm)	Number of light	Number of segments	Rated voltage	Rated power
ON/OFF	247	monochrome	5050	OSRAM	1000	60	–	DC24V	10W
ON/OFF	125	monochrome	5050	OSRAM	500	30	–	DC24V	5W
ON/OFF	62	monochrome	5050	OSRAM	250	18	–	DC24V	2.5W
DMX512	225	monochrome	5050	OSRAM	1000	48	8	DC24V	10W
DMX512	116	monochrome	5050	OSRAM	500	24	4	DC24V	5W
DMX512	56	monochrome	5050	OSRAM	250	12	2	DC24V	2.5W
DMX512	118.6	RGB	5050	EPISTAR	1000	48	8	DC24V	10W
DMX512	59.3	RGB	5050	EPISTAR	500	24	4	DC24V	5W
DMX512	29.7	RGB	5050	EPISTAR	250	12	2	DC24V	2.5W
DMX512	277.5	RGBW	5050	EPISTAR	1000	48	8	DC24V	10W
DMX512	138.8	RGBW	5050	EPISTAR	500	24	4	DC24V	5W
DMX512	69.4	RGBW	5050	EPISTAR	250	12	2	DC24V	2.5W
