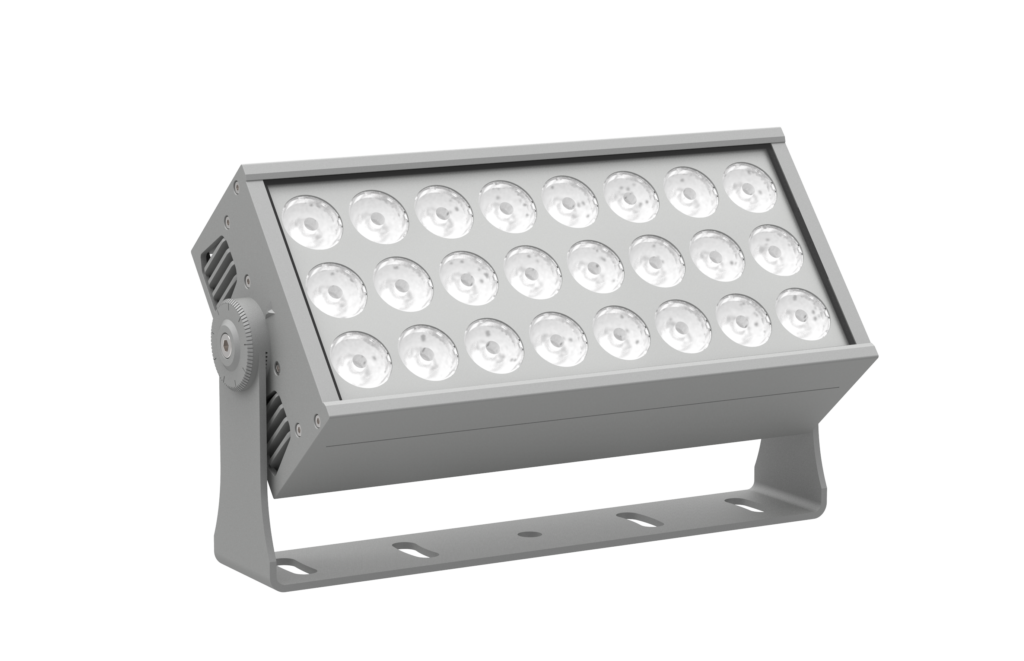

LED FLOODLIGHT KVN-SP-S15888
Argument
● LIGHT COLOR :
● CONTROL MODE :
● OPTIONAL CONFIGURATION :
● LAMP BODY MATERIAL :
● MASK MATERIAL :
●LUMINOUS ANGLE :
● PROTECTION LEVEL :
● ELECTRICAL GRADE :
● OPERATING TEMPERATURE :
Monochrome/ RGB/ RGBW
ON/OF, DMX512
Lightsource, Lightshade
Aluminum
Tempered glass
8°, 25°
IP66
Class I
-30℃ ~ 55℃
Product Size
Product Installation
① First fix the lamp body with screws on the required mounting surface
② The lamp body is adjusted to the appropriate Angle

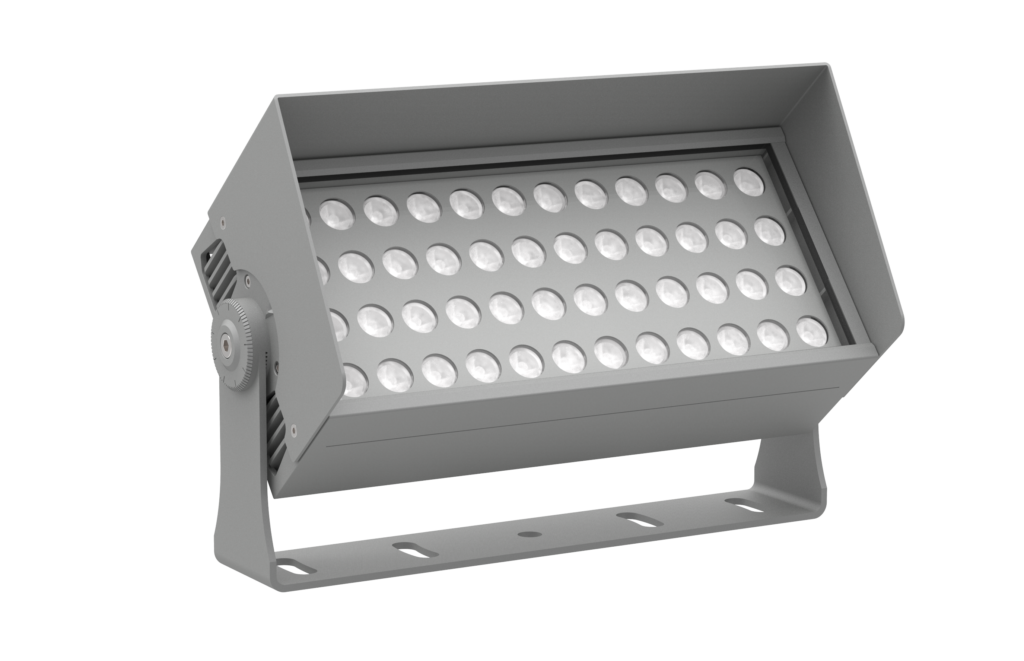

Optional accessories
Lighting Sequence Definition
| Control Mode | Linear Order | Input Diagram |
|---|---|---|
|
ON / OFF |
🔴+/DC24V ⚫-/GND |
|
| Control Mode | Linear Order | Input Diagram |
|---|---|---|
|
DMX |
🔴DC24V ⚫GND 🟢A 🔵B 🟡PI / PO |
|

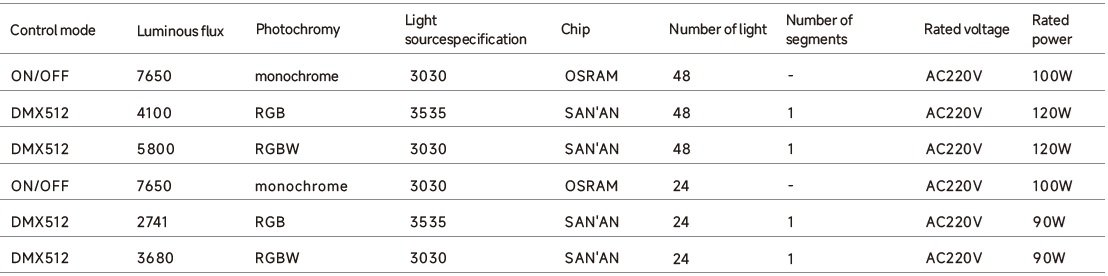

Parameter list
Optical Data
