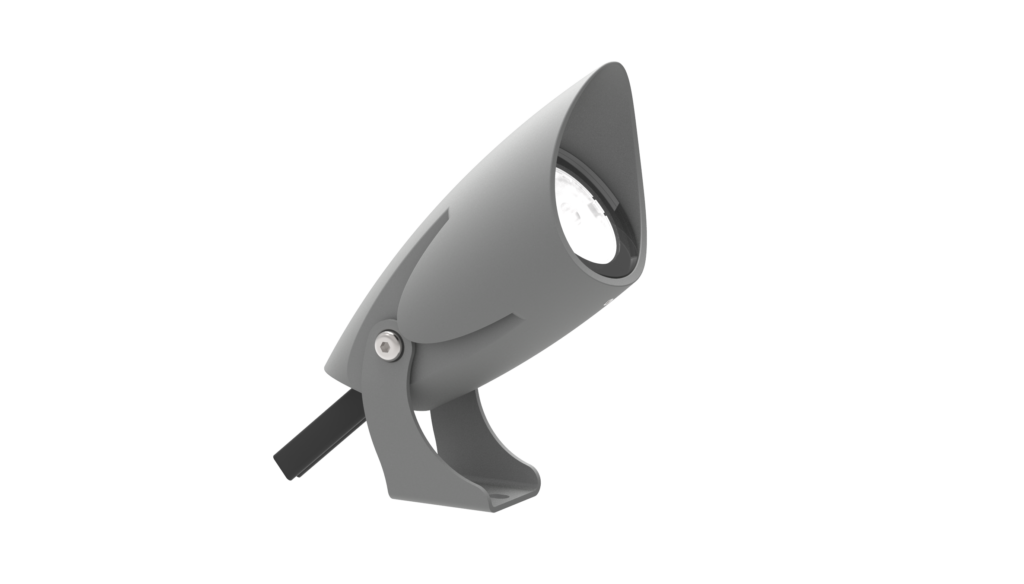

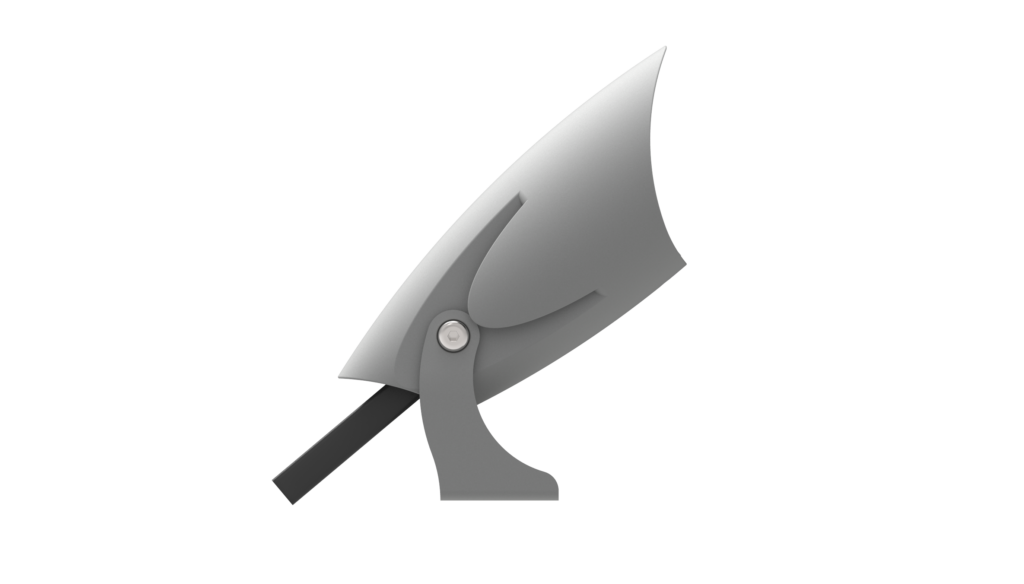

LED FLOODLIGHT KVN-SP-C58
Argument
● LIGHT COLOR :
● CONTROL MODE :
● OPTIONAL CONFIGURATION :
● LAMP BODY MATERIAL :
● MASK MATERIAL :
●LUMINOUS ANGLE :
● PROTECTION LEVEL :
● ELECTRICAL GRADE :
● OPERATING TEMPERATURE :
Monochrome/ RGB/ RGBW
ON/OF, DMX512
Lightsource
Die-castaluminum
Tempered glass
15°
IP66
Class III
-30℃ ~ 55℃
Product Size
Product Installation
① First fix the lamp body with screws on the required mounting surface
② The lamp body is adjusted to the appropriate Angle
Custom luminaire bracket installation dimensions
Optional accessories
Lighting Sequence Definition
| Control Mode | Linear Order | Input Diagram |
|---|---|---|
|
ON / OFF |
🔴+/DC24V ⚫-/GND |
|
| Control Mode | Linear Order | Input Diagram |
|---|---|---|
|
DMX |
🔴DC24V ⚫GND 🟢A 🔵B 🟡PI / PO |
|
Power supply reference
| Control mode | Luminaire voltage | Luminaire power | Lamp power supply line specification | Number of single side portable lamps | Tee wiring | Bus wiring | Power supply can be connected to the number of lamps formula |
|---|---|---|---|---|---|---|---|
|
Steady light |
24V |
4W |
2*1.0² |
27 |
1:54 |
1:54 |
Power supply can be connected to the number of lamps: n=((0.8 * Power supply of the power supply) /(power of a single lamp)) * n take the intege |
|
Steady light |
24V |
6W |
2*1.0² |
18 |
1:36 |
1:36 |
|
|
Monochromatic DMX |
24V |
6W |
2*1+3×0.3 |
18 |
1:36 |
1:40 |
|
|
RGB DMX512 |
24V |
9W |
2*1+3×0.3 |
12 |
1:24 |
1:40 |
|
|
RGBW DMX512 |
24V |
9W |
2*1+3×0.3 |
12 |
1:24 |
1:30 |
Parameter list

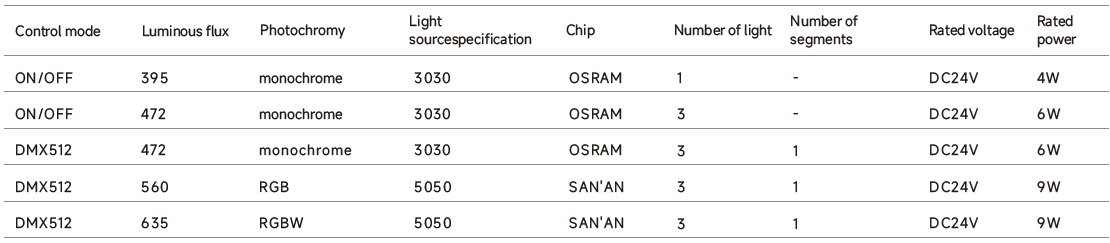

Optical Data
