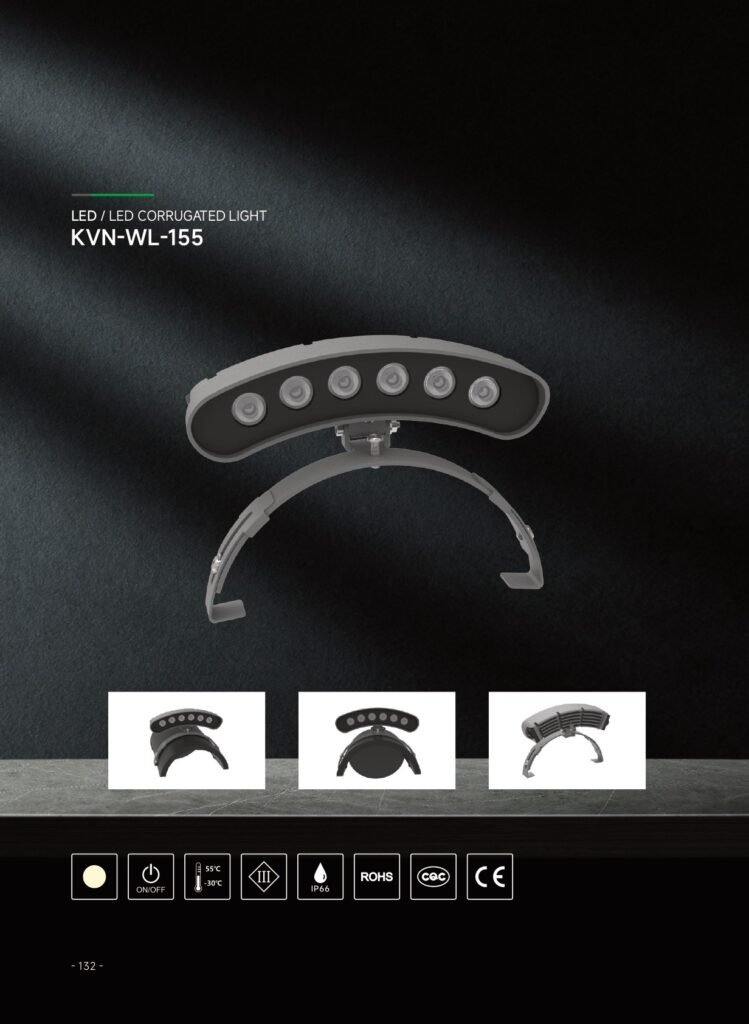

LED CORRUGATED LIGHT KVN-WL-155
Argument
● LIGHT COLOR :
● CONTROL MODE :
● OPTIONAL CONFIGURATION :
● LAMP BODY MATERIAL :
● MASK MATERIAL :
●LUMINOUS ANGLE :
● PROTECTION LEVEL :
● ELECTRICAL GRADE :
● OPERATING TEMPERATURE :
Monochrome
ON/OF
Lightsource
Die-castaluminum
Tempered glass
30°
IP66
Class III
-30℃ ~ 55℃
Product Size
Product Installation
① Adjusting clip
② Mounting lamp body
③ Adjust the lamp body Angle
Optional accessories
Lighting Sequence Definition
| Control Mode | Linear Order | Input Diagram |
|---|---|---|
|
ON / OFF |
🔴+/DC24V ⚫-/GND |
|
| Control Mode | Linear Order | Input Diagram |
|---|---|---|
|
DMX |
🔴DC24V ⚫GND 🟢A 🔵B 🟡PI / PO |
|
Power supply reference
| Control mode | Luminaire voltage | Luminaire power | Lamp power supply line specification | Number of single side portable lamps | Tee wiring | Bus wiring | Power supply can be connected to the number of lamps formula |
|---|---|---|---|---|---|---|---|
|
Steady light |
24V |
6W |
2*1 |
25 |
1:50 |
1:50 |
Power supply can be connected to the number of lamps: n=((0.8 * Power supply of the power supply) /(power of a single lamp)) * n take the intege |
Parameter list
| Control mode | Luminous flux | Photochromy | Light source specification | Chip | Number of light | Number of segments | Rated voltage | Rated power |
|---|---|---|---|---|---|---|---|---|
|
ON/OFF |
520 |
monochrome |
3030 |
OSRAM |
6 |
– |
DC24V |
6W |
Optical Data
